Why Designers Love Dobby Fabrics: How You Can Create Your Own

Dobby fabrics add rhythm and depth: small geometrics, bold plaids, and subtle textures that move with light. With Recolor.io’s Dobby Creator, you can sketch ideas fast, see a realistic fabric instantly, and export a mill-ready technical page when you’re done.

You’ll find dobby fabrics everywhere once you start looking, woven into crisp shirting, sharp suiting, flowing dresses, elegant scarves, and even interiors, from soft cushions to dramatic drapery. The classics never fade: fine pinstripes, timeless gingham, windowpane checks, and heritage tartans. Yet today’s designers push the story further with oversized checks, daring color blocks, and tonal weaves that shimmer with light. Stripes draw the eye in one confident direction, perfect for length and elegance, while checks create balance, rhythm, and structure. Pair a subtle ground with delicate accent lines, and you’ve got designs that feel both fresh and endlessly wearable.

How to create a dobby fabric

With the Recolor.io Dobby Creator, designing plaids, tartans, and dobby weaves becomes an end-to-end process. The tool delivers high-quality fabric visuals for review, along with a detailed PDF tech sheet for mills. It’s built for speed, realism, and precision, making it easy to explore ideas, simulate fabrics, and plan warp and weft with confidence.

Colors: Warp and Weft

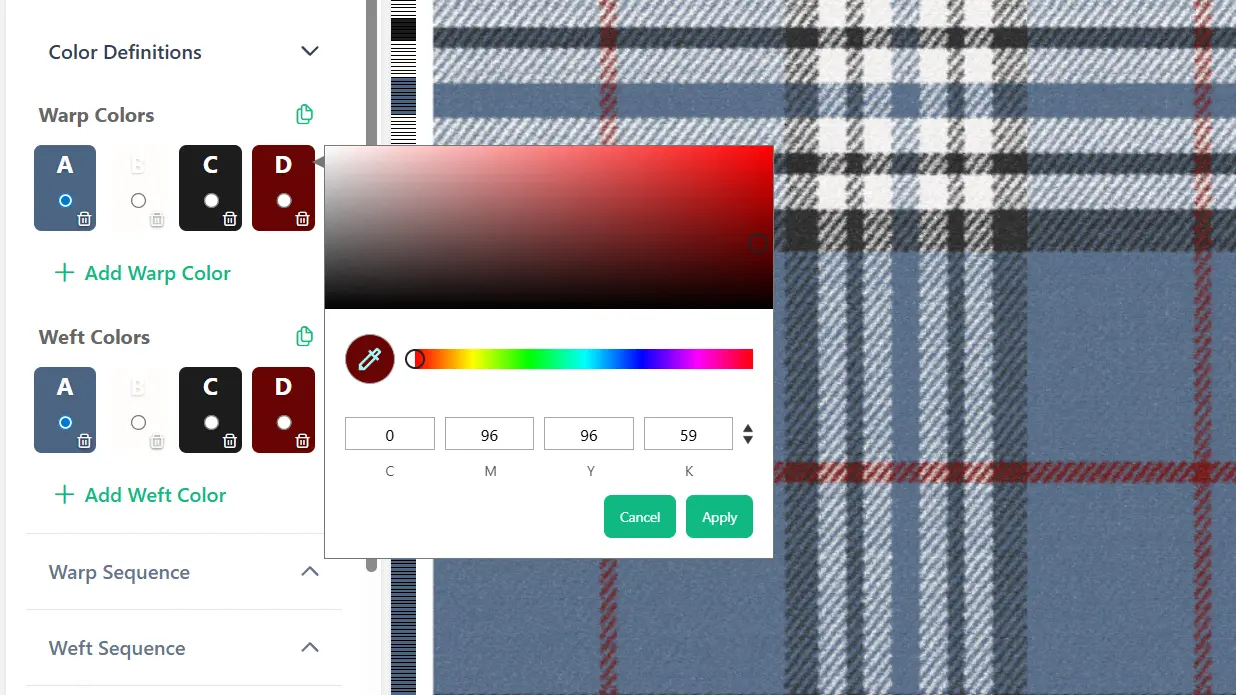

• Set your yarn colors: Pick shades with the color picker or eyedropper. Optionally assign letters (A, B, C) so editing sequences is fast.
• Manage colors: Add or remove, set an active color for Warp or Weft, drag to reorder, and use Copy to Warp or Copy to Weft.
• Background color: Set the canvas background to simulate the ground between yarns.

Sequences: Striping Made Visual

• Visual editor: Ordered list of threads with counts per block. Drag to reorder, change letters and counts inline, quick add/remove.
• Density & units: Set warp/weft densities; units carry through to export and the tech page.

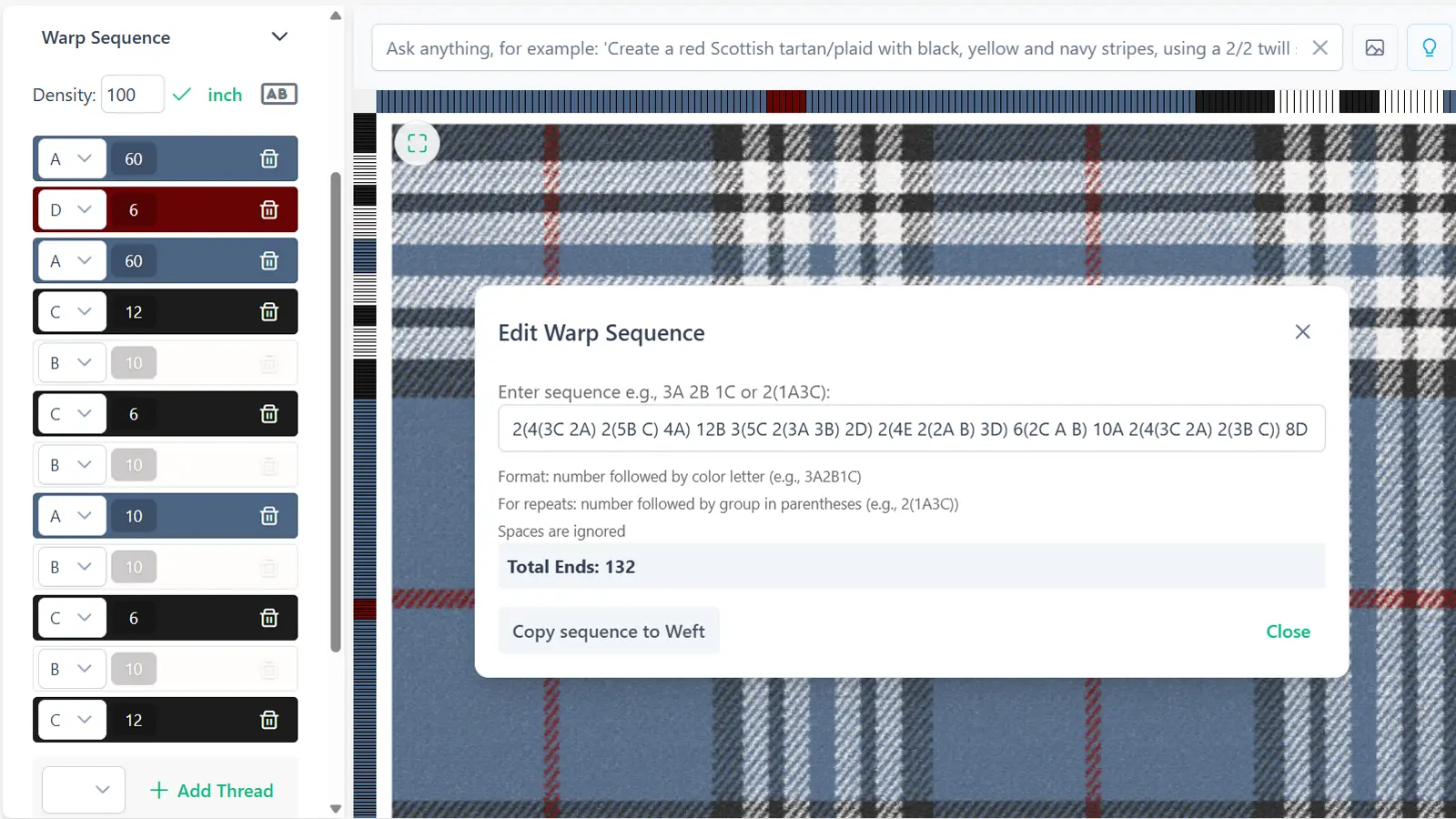

• Sequence dialog: Type patterns like “3A 2B 1C” or repeats like “2(1A3C)”, see live totals, and Copy to Warp or Copy to Weft.
• Paint bars: Always‑visible bars on top/left let you paint ends/picks by dragging for ultra‑fast drafting.

Weave Library

• Weave Library: Plain, 2/2 Twill, 4/4 Twill, Twill 2/1, Twill 1/2, 2/2 Twill Point, Satin 5, Satin 8.

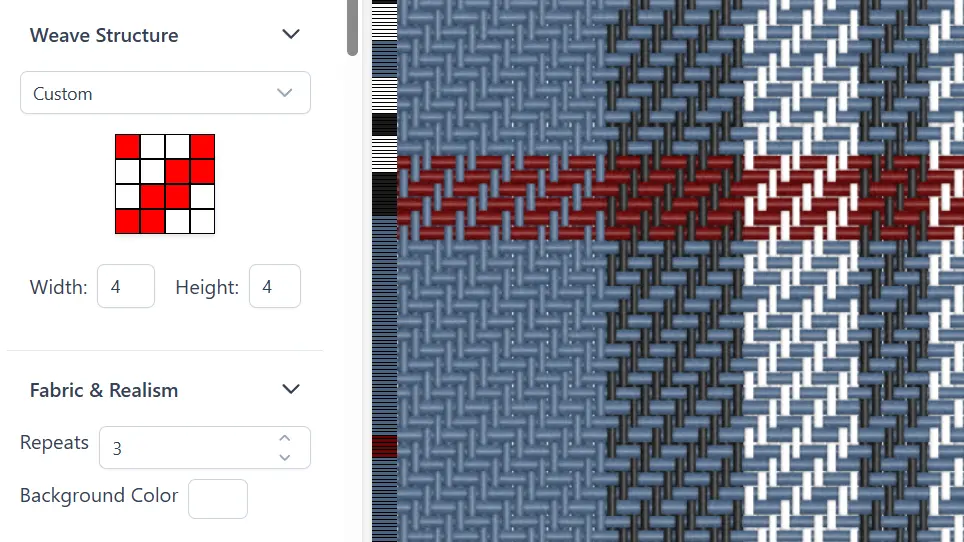

• Custom weave: Click cells in a grid to choose where warp goes over or under weft. Adjust width/height to change repeat size.

Rendering and Simulation

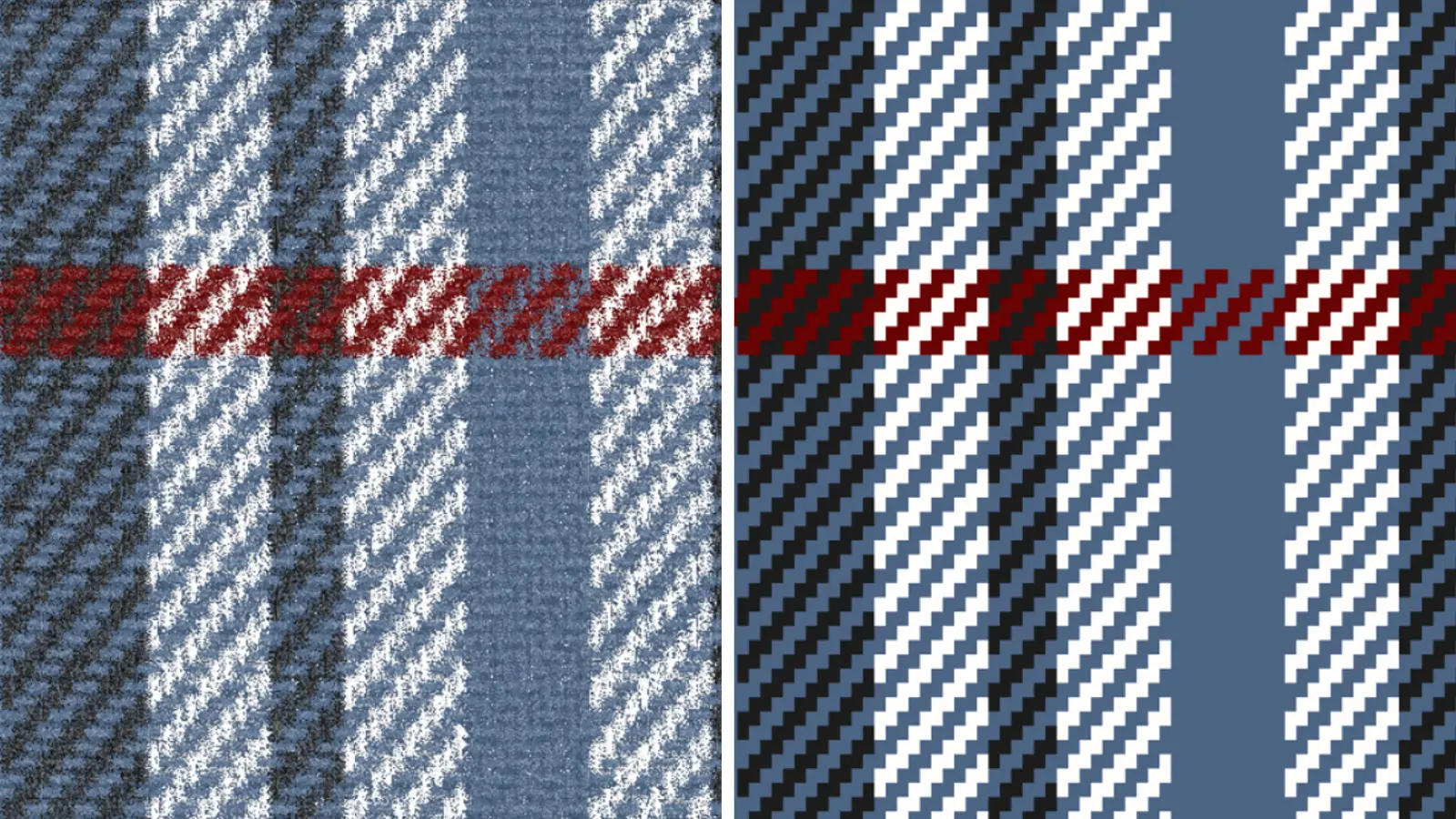

Switch between two modes:

• Flat view: Fast for drawing and editing.

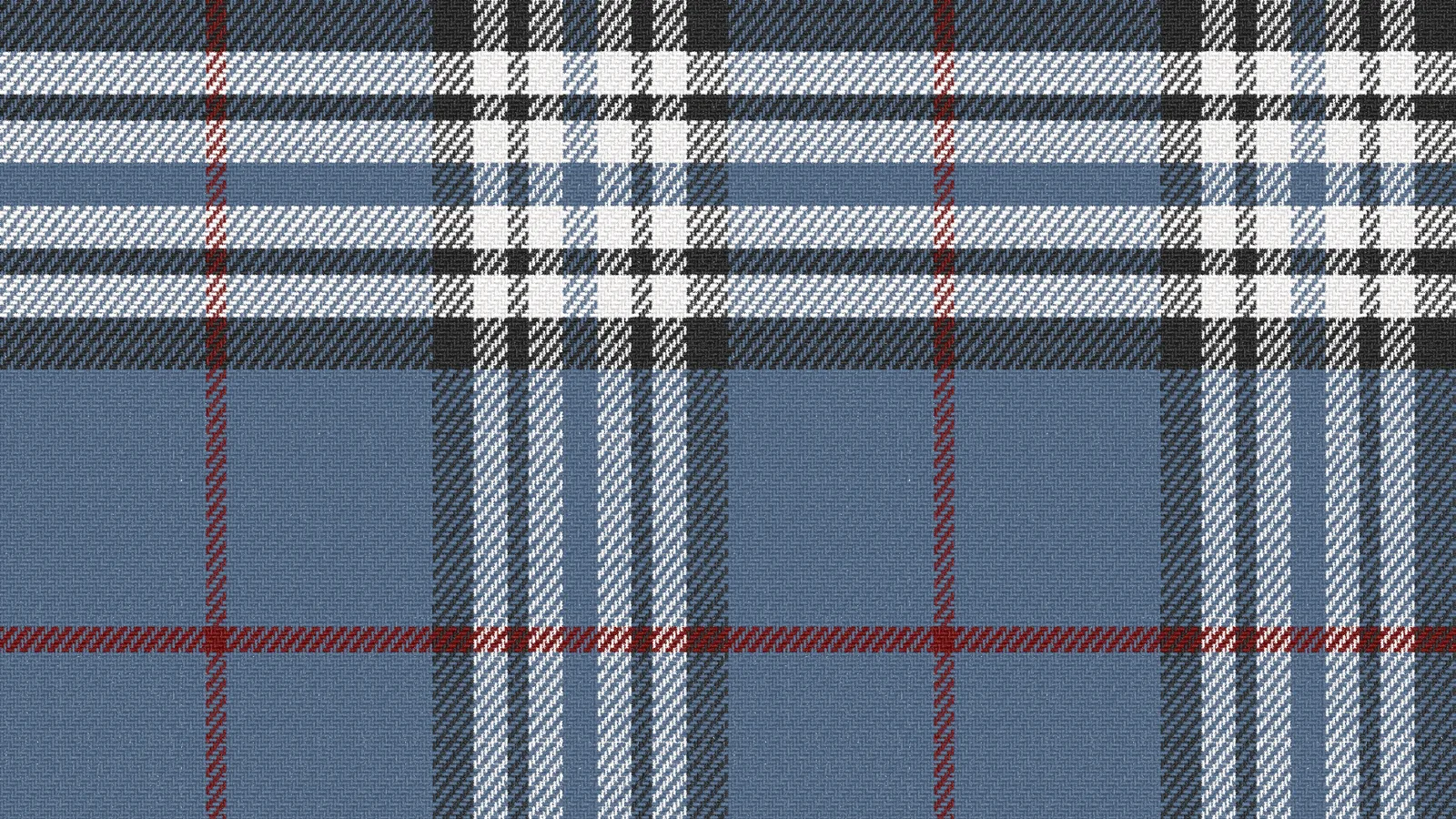

• Fabric view: Adds realism: material, lighting, yarn texture, and shadows.

Preview multiple repeats, choose how many to export, and fine‑tune realism: material (Cotton, Wool, Silk, Synthetic), directional lighting, gloss, sheen, yarn shape, crossing shadows, and natural yarn variation.

There are four options to provide realism to your fabric:

1. Add Brushed Effect: From Low to High, this adds a brushed hand to the fabric; applied with awareness of the weave and yarn structure.
2. Weave Smudge Effect (most effective when option 4, Realistic Yarns, is on): Adds subtle softening so the result feels more fabric and less computer‑generated.
3. Add Yarn Noise: Adds a fine, speckled texture over the image for extra yarn surface detail.
4. Realistic Yarns: Generates lifelike warp and weft yarns. Control lighting, gloss/sheen, crossing shadows for depth when yarns pass over or under, and yarn variation for natural differences in yarn size and spacing.

Note: Flat view turns off all four realism options.

Export Your Design

• PNG export: Download the fabric image at 1×/2×/4× repeats.

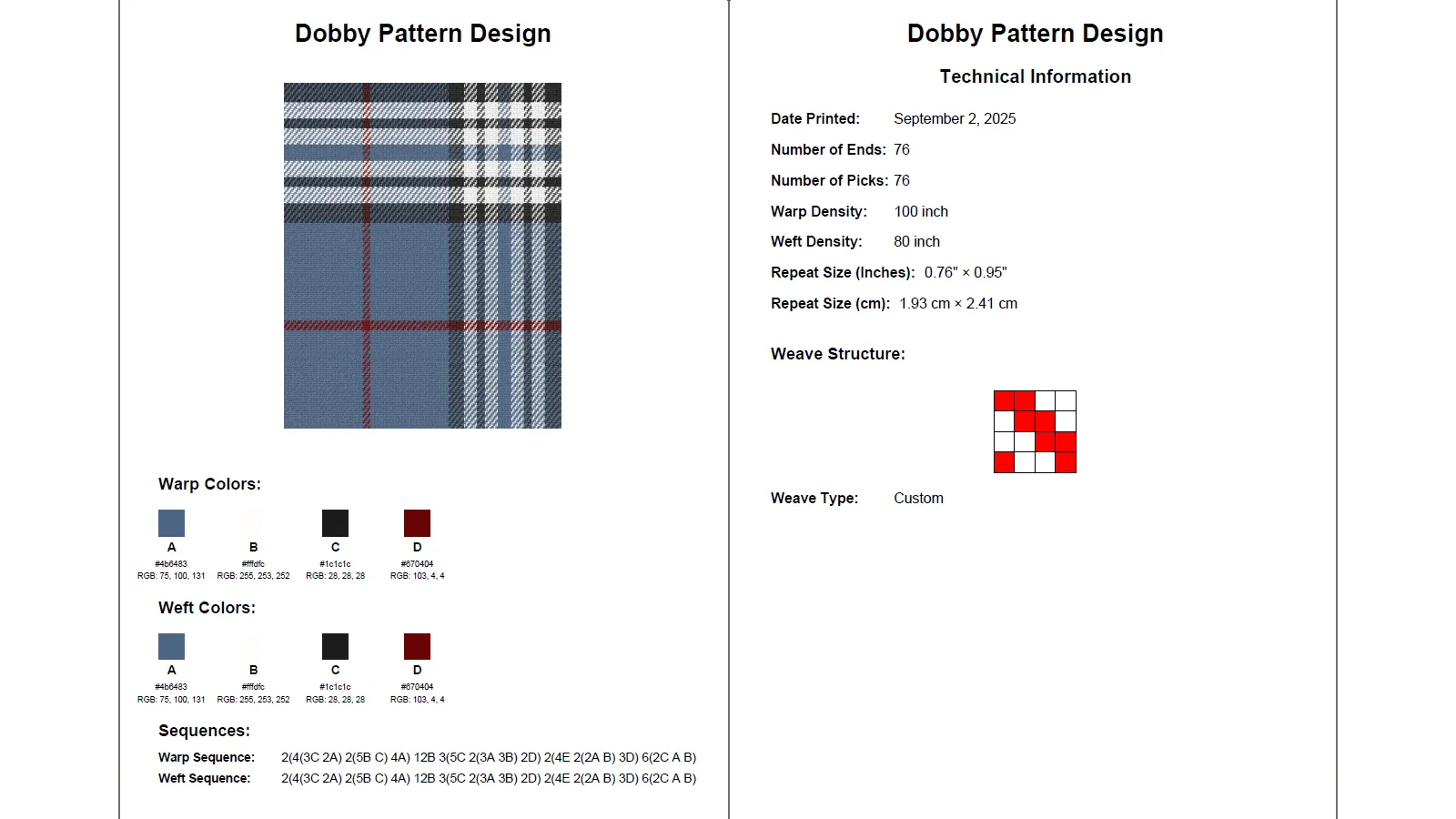

• PDF export: Generate a pattern PDF and include a technical page (colors, sequences, densities, weave diagram, measurements).
• Design save/load: Save complete designs for versioning and collaboration.

Why This Matters

• Accurate planning: Sequences, density, and weave map directly to dobby loom settings.
• Realistic simulation: Material, lighting, and yarn geometry preview real production outcomes.
• Rapid ideation: Paint bars, drag editing, and AI/image extraction speed up development.
• Mill‑ready outputs: PDF technical page consolidates all details for manufacturing.

Quick Instructions

Start a design

• Set the rendering mode: use Flat view while drafting; switch to Fabric view to assess realism.
• Choose a Weave preset or switch to Custom and click cells to edit; adjust grid width/height for the repeat.

Define colors

• Add yarn colors (A, B, C…). Pick shades with the color picker or eyedropper. Copy palettes between warp and weft when helpful.

Create sequences

• Use the Sequence dialog: type patterns like “3A 2B 1C” or repeats like “2(1A3C)”. Check total ends/picks and Copy to Warp or Copy to Weft.
• Or use the paint bars to drag‑fill warp/weft visually. Drag items in the list to reorder and adjust counts inline.
• Set density and unit for warp and weft.
• Build checks (Warp or Weft): mirror a sequence across the center (e.g., 1A 2B 4C 2B 1A) to create balanced plaids.
• Add accent lines: insert single‑end highlights (e.g., 1Y) between larger color blocks for crisp detail.
• Mix thick and thin: combine large counts (8C) with small counts (1A, 2B) to create rhythm.
• Use repeats for motifs: wrap sections in parentheses and repeat (e.g., 3(1A 2B)) to scale patterns quickly.
• Keep weave in mind: aim for sequence lengths that align cleanly with your weave repeat for smooth results.

Refine the fabric

• Set Repeats and Background Color.
• In Fabric view, tune realism: material preset, directional light, gloss/specular, sheen, yarn cross‑section, crossing shadows, and yarn variation.
• Toggle realistic yarn texture for full shading.

Boost with AI

• Type a prompt (e.g., “Red Scottish tartan, thin yellow accent, 2/2 twill”), then Generate.
• Or upload an image and pick: “Use Colors/Sequence/Weave/All from image.”
• Add fabric change instructions, like: the red stripe should be more dominant.
• Use voice to dictate prompts if supported; explore the prompt examples dialog.

Save and share

• Download PNG (1×/2×/4× repeats) for visual approvals.
• Download PDF and include the technical page for mills (weave diagram, sequences, densities).

Tips

• Keep sequences realistic: one number equals one yarn; ensure weave repeats are valid.
• For tartans: make warp and weft sequences symmetrical where needed; 2/2 twill is common.
